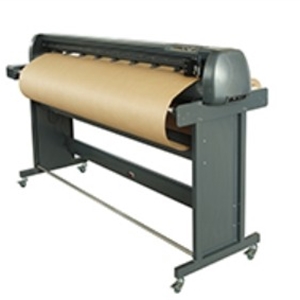

Apparel Cutting Plotter
По запросу
- The first company to develop the Apparel Cutting Plotter (also called the CAD cutting/plotting machine ),and preserve the intellectual property and also the patent technology.
- Main control equipment applies technical grade high-speed 32-bit embedded CPU, with the advantage of high operating speed, high integration level and high reliability.
- Advanced drawing arithmetic: with integration of 3000 kinds of characterized graphics and union of advanced motional mathematics model, can draw complicated curves and biases quickly and smoothly.
- High data outputting speed: the max. outputting speed is 80000 turns/second, and the max. cutting/plotting speed can reach 1200mm/s.
- High transferring speed: choose between 9600-115200,supports the max. speed of 11520bps.
- High anti-static capacity: the special anti-static mode can endure times of static disturb.
- Parallel processing capacity: during the plotting process can also support coordinate performance, pause, and also the performance of operating speed and time, also supporting online updating.

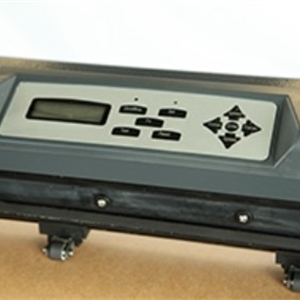

- Human-friendly menu: perfect function provides the operator great advantage on freely choosing among the functions transferring speed/flow control/language performance/pen up-down time/test graphics and anti-static mode in the dry areas.
- Professional structure: imported balanced linear bearing.
- Acceptable paper media:60-300g/m2.Double purpose machine: working both as a cutter and as a plotter.
Type |
HC-1400 |
HC-1700 |
Max. Plotting Width |
1250mm(49.2 in.) | 1600mm(64.5 in.) |
Acceptable Pens |
Ball Point Pens | |
Acceptable Blade |
Special Cutting Blade | |
Max. Roll-Media |
40 kg | |
Acceptable Media(g/m虏) |
60g~120g | |
LCD |
English LCD | |
Pen Pressure |
0-500g | |
Plotting Speed |
1200mm/s(31.5 in./s) | |
Machine Resolution |
0.0254mm(0.001in.) | |
CPU Double |
CPU | |
Data Buffer |
1-4MB | |
Hardware Interface |
RS-232(Serial cable), | |
Power Supply |
AC200V/110V(15%) | |
Working Humidity |
35%-75%(No Condensing water) | |
Working Temperature |
10-35掳C | |
Stand and Take-up System |
Yes | |
Shipping Weight |
70kg | 80kg |
