Ods 4032 series

Промышленные маркираторы, граверы - оптовые и розничные поставки

Ods 4032 series

Артикул: 13 Бренд: King Rabbit
По запросу

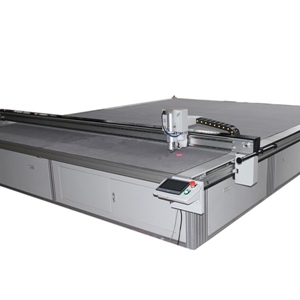

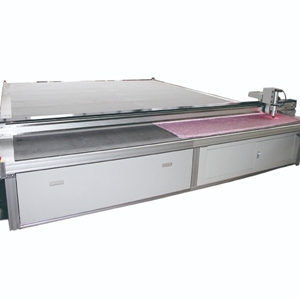

Oscillating knife cutting machine is the latest developed high speed, high precision and high quality cutting machine of Jinan King Rabbit Technology Development Co., Ltd. The machine equips with the advanced Panasonic motor, which ensure the high speed and accurate locating function. It has an outstanding performance among all the similar types of product. We have specs of 1511/2516/2030 and applicable for Carton package cutting, leather and furniture cutting, auto interior cutting and advertising sign cutting. Special use oscillating knife is also offering to meet all our clients’ various demands.

Features:

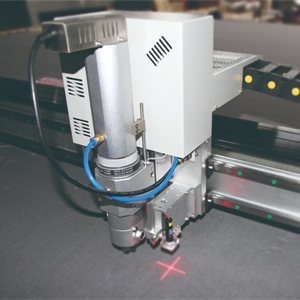

  1. Multi-function cutting head, applicable for various materials’ cutting
  2. strong power vacuum adsorption
  3. compatible with kinds of CAD software
  4. Produced in less batches which can save time and work force
  5. anti-collision built-in automatic sensor
Technical parameters/modelOds1511Ods2516Ods3020
Multi-function cutting headChange Oscillating knife, half knife, full knife, inclined knife,
pinch roller and various kinds of tools
Tool configurationVarious kinds of cutting tolls, pinch roller, pen, cross positioning laser
Security configurationHigh sensitivity infrared ray interaction (selected)
Movement speed1200mm/s  Maximum 1200mm/s
Cutting speedMaximum 800mm/s (set according to different cutting materials)
Cutting materialCorrugated paper, PVC expansion sheet, kt sheet, thick foam,
grey board, paperboard, car sticker, adhesive Sticker, etc.
Cutting thicknessMaximum 5-mm (set according to different materials)
Material fixing methodHigh power vacuum absorption and intellectual partition
Repeated positioning accuracyMaximum 0.01mm
Mechanical PrecisionMaximum 0.02mm
Drive systemSteel wire synchronous belt , AC servo motor, linear guideway
Control systemdigit RISC core cpu + large scale programmable logic array
Operating modeoperation platform + data output control software (operation
platform can be divided into connected and separated parts)
Display modeChinese and English liquid crystal touch screen
Data transmission methodEthernet
Instruction systemHPGL compatible format
Buffer capacityStandard 4GB
Rated power11KW12KW14KW
Maximum working dimensions1500*11002500*16003050*2050
Rated voltage

380V

Can cut Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, automobile mat, car seat, cover, sun block and car curtain etc. and applicable for Carton package cutting, leather and furniture cutting, auto interior cutting and advertising sign cutting.
