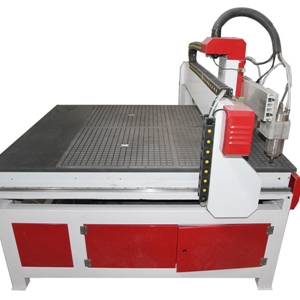

RC1212 single-head/Multi-head CNC router

Артикул: 9 Бренд: King Rabbit
По запросу


RC1212 is King Rabbit production for large-scale batch engraving ,this model can add the second spindle which greatly improved the working efficiency . Easy to operate ,widely use in handicrafts processing and advertising industry

Single-head CNC router cannot solve it !

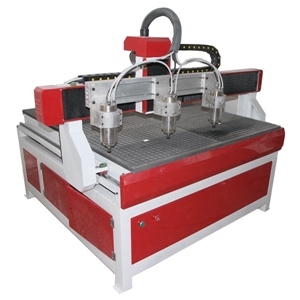

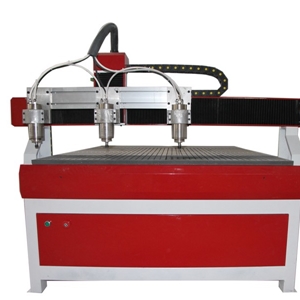

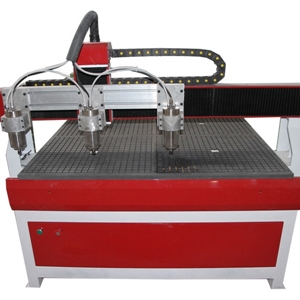

Multi-head CNC router is a good choice.Multi-head CNC router will help you make quick work of furniture, wood, windows, doors and instruments with high efficiency. We offer you multi-head CNC router with high precision ball screw to increase positional accuracy.

Meanwhile, we can provide OEM service based on the size and material to be cut. We will send a matched router to your factory or workshop.

Machine features :

  1. adding rotary device(100mm diameter) can do 3d cylinder engraving .
  2. 1.5KW water-cooling spindle
  3. X,Y,Z axis adopted Germany ballscew driving
  4. Stable dsp control system
Machine modelRC1212RC1218RC1325A
Working area1200*1200*120mm1200*1800*150mm1300*2500*150mm
Overall dimensions1630*1730*1365mm2200*1700*1450mm2995*1800*1590mm
Driving modeStepper motor ,stepper driver
TransmissionBall screw driving
Control systemDSP controller
Spindle power1.5KW
Lathe bedCast iron
Guide wayLinear round guide rail (Linear square guide rail)
Blade diameter3.175mm,6mm
Application rangeNon -metal materials engraving and cutting ,such as wood board ,
PVC,acrylic,plywood ,furniture making ,advertising production .
