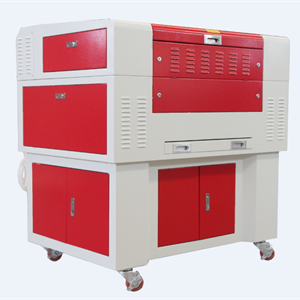

SE laser engraving machine
По запросу
- Engraving area: 1, 200 x 900mm
- Laser power: 80W
- Laser type: CO2 laser tube
- Engraving speed: 0~1000mm/s
- Cutting speed: 0~600mm/s
- Resetting positioning accuracy: <0.01mm
- Cutting depth: Acrylic 0-25mm
- Minimum shaping character: 1.5 x 1.5mm
- Power supply: 220V± 10% 50Hz or 110V± 10% 60Hz
- Gross power: 1, 600W
- Software supported: ArtCut, CorelDraw, PhotoShop, AutoCAD
- Graphic format supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF
- Engraver for curve surfaces: We can add an rotary attachment on the laser engrave/cutting machine, then the machine can engrave on cylinder
- Water cooling: (Yes/No) Yes
- Maximum height of materials to engrave (mm): 280mm (up and down by motor)
- Laser tube (life hours): 1, 500 hours
- Equipment dimensions: 1, 700 x 1, 350 x 1, 100mm
- Assistant equipment: Water pump, exhaust fan, aluminum alloy worktable
- Optional spare parts: Metal laser tube, rotary system, cooling water system
- Recommended spare parts/consumables: Laser tube and lens
| Type | HX-4060SE | HX-6090SE | HX-1290SE | HX-1390SE | HX-1490SE | HX-1610SE | HX-1613SE |
|---|---|---|---|---|---|---|---|
| Laser power | 40w | 60w | 80w/100w/120w/150w | ||||
| Engraving Area (mm) | 400 x 600 | 600 x 900 | 1200 x 900 | 1300x900 | 1400x900 | 1600x1000 | 1600x1300 |
| Gross power | 1200w | 1200w | 1600w/1800w/2000w | ||||
| Laser type | CO2 Laser tube | ||||||
| Cutting depth | acrylic 0-20mm | ||||||
| Engraving speed | 0-1000mm/s | ||||||
| Cutting speed | 0-600mm/s | ||||||
| Resetting positioning accuracy | <0.01mm | ||||||
| Maximum forming character | 1.5 x 1.5mm | ||||||
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ | ||||||
| Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD | ||||||
| Graphic format supported | PLT, DXF, BMP, JPG, GIF, PGN, TIF | ||||||
| Engraver for Curve surfaces | we can provide rotary system so as to engrave on curse surfaces | ||||||
| Water Cooling | Yes | ||||||
| Maximum Height of Materials to Engrave |
280mm(by motor) | ||||||
| Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable | Air compressor | |||
| Optional Spare Parts | RF Laser Tube | Rotary System | Cooling water system | Red dot pointer |
